PLUS Tube
Uncompromising power and precision
Power up to
50 kW
WORKING AREA UP TO
8000 x 2000 mm
High performance for linear and tube machining

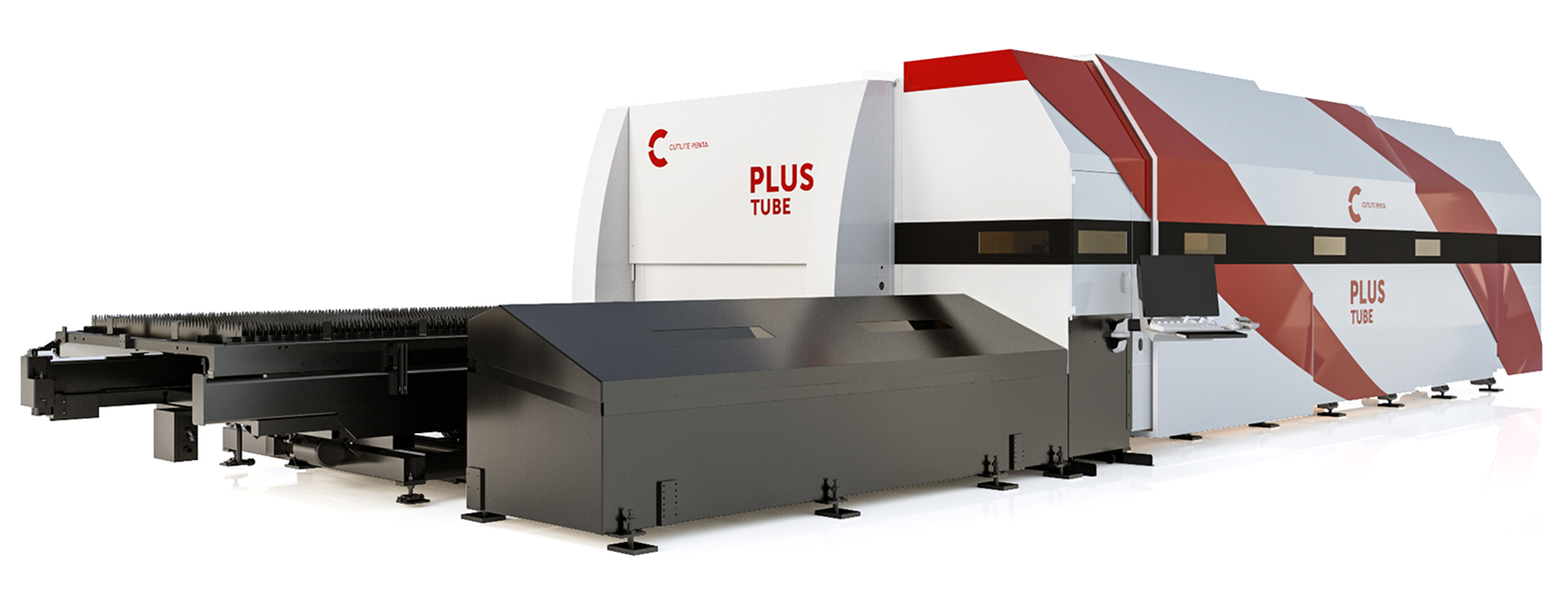

The PLUS Tube system represents the best possible choice in terms of high performance, structural solidity and high efficiency for both flat and tubular machining. The tube module completes the system, making it versatile and dynamic: it changes from flat to tubular machining automatically using the same EVO 3 cutting head which, if equipped, provides the possibility of Bevel cutting on the tube part.
The basic structure consists of the PLUS system and the EVO 3 cutting head can manage up to 50 kW of laser power. It guarantees efficiency and reliability in the most intense processes while maintaining a high quality standard.
CONFIGURATOR
EVO 3 Head
Bevel Head
Bevel cutting is the process of cutting a piece with an edge not perpendicular to the top of the piece.
The mechanically innovative head is very small, lightweight and allows rotating by +/- 45° in both cutting directions.
Laser Sources
Fiber laser sources provide extensive versatility and make it possible to cut a multiplicity of metal types. Developed as a single system, it can be paired with a wide variety of optical fiber diameters. High efficiency, excellent beam quality and low power consumption are all hallmarks of the source. The source is housed in a NEMA 12 cabinet which is conditioned and sealed so that it can operate even in the harshest of environments. The high degree of reliability of these sources also ensures particularly low maintenance costs.
Automatic step
LOADER
Maximum capacity 6 tubes having a ø 305 mm diameter or maximum side 220 mm
Automatic loading of tubes from ø 20mm - up to ø 305 mm
Automatic loading lengths from 1500 mm to 6500 mm, which can be increased on request
Sliding surfaces entirely covered in plastic material to avoid damaging and scratching delicate tubes
Possibility of mounting on the operator or rear side
Loading/unloading and Warehouses
Cutlite Penta also produces in-house in-line or 90° loading and unloading systems combined with vertical storage warehouses that communicate directly with our laser systems.
Pallet lift changeover
This optional extra allows optimisation of processing times by reducing loading and unloading times of the sheet metal.
Automation
This option allows optimisation of processing times, almost entirely masking loading and unloading times.
Camera
A position camera that enables remote monitoring and viewing of machine operation.
Automatic Nozzle Replacement (optional)
Automatic nozzle replacement is an option whereby the machine automatically changes the cutting head nozzle with no need for operator involvement.
Two-level Worktable Changeover
Two-level worktable changeover allows the table to be changed in approximately 15 seconds, almost completely masking loading and unloading times – the fiber plus system is the fastest on the market today.
Tube Size Detection (opzionale)
Tube size optical detection sensor.
Software
Simple and intuitive cutting-edge front-end software, designed to guarantee the highest level of versatility and customisation. Laser cutting has never been so easy.
Smart Manager Plus
An innovative software for machine management and supervision. With Internet access, the system can be monitored via remote assistance using TeamViewer.
Smart Composer
Cutlite Penta’s revolutionary new software interfaces seamlessly with the machine’s numerical control and smart manager front-end software.
Samples
Technical Feautures
| PLUS TUBE MODEL | WORKING AREA |
| 3015 | 3000 x 1500 mm |
| 4015 | 4000 x 1500 mm |
| 4020 | 4000 x 2000 mm |
| 6020 | 6000 x 2000 mm |
| 6025 | 6000 x 2500 mm |
| 8020 | 8000 x 2000 mm |
| Round format | Rectangular format | Tube wall thickness |
| min. 20 mm max. 220 mm Ø | min. 20 mm max. 160 mm | 8 mm |
| Round Format | Square/rectangular format | Tube wall thickness |
| min. 20 mm max. 220 mm Ø | min. 20 mm max. 160 mm | 8 mm |
| LASER POWER |
| 1000 W |
| 2000 W |
| 3000 W |
| 4000 W |
| 6000 W |
| 8000 W |
| 10000 W |
| 12000 W |
| 15000 W |
| 20000 W |
| 30000 W |
| 40000 W |
| 50000 W |
| Z-AXIS |
| 350 mm |
